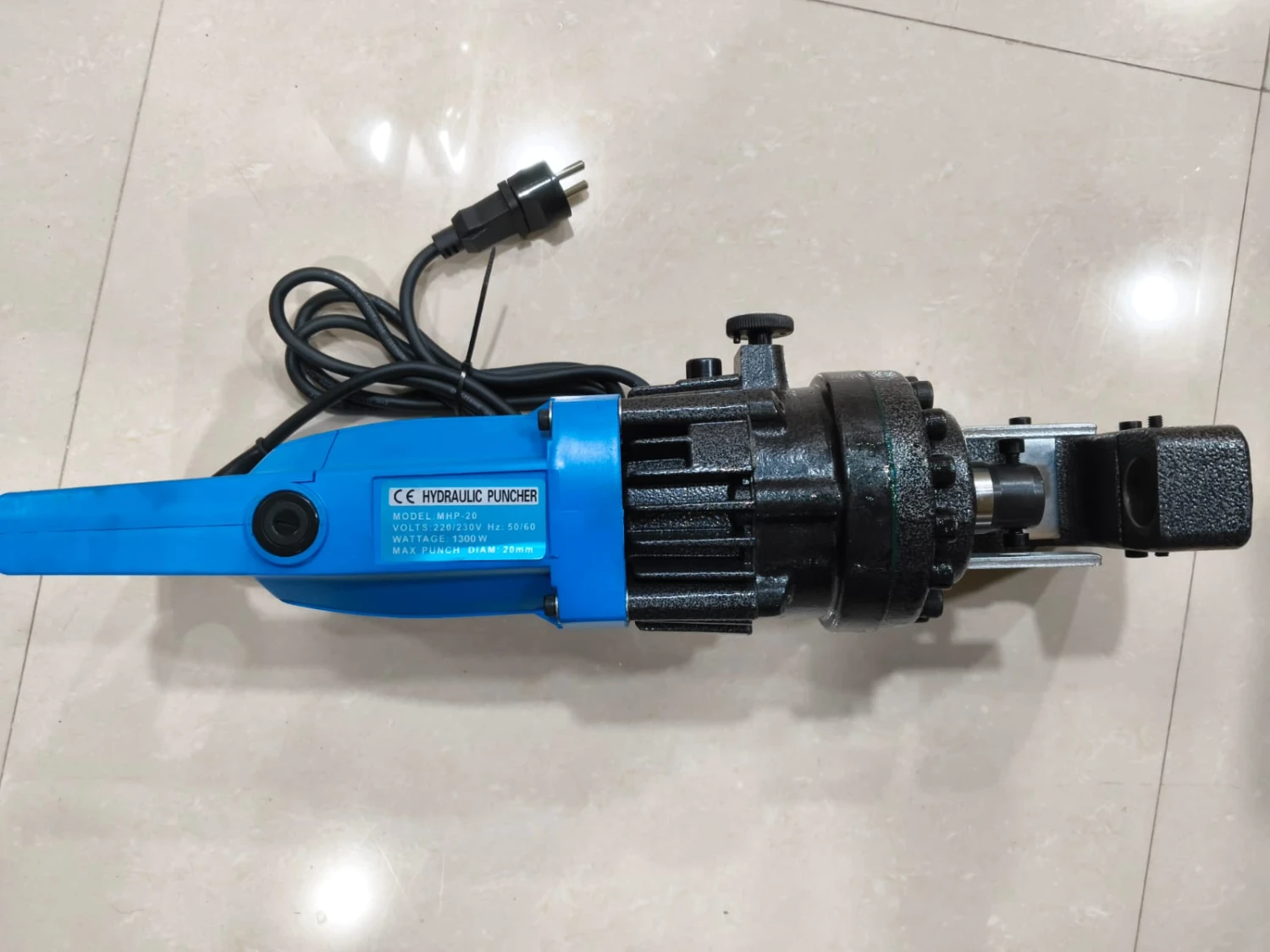

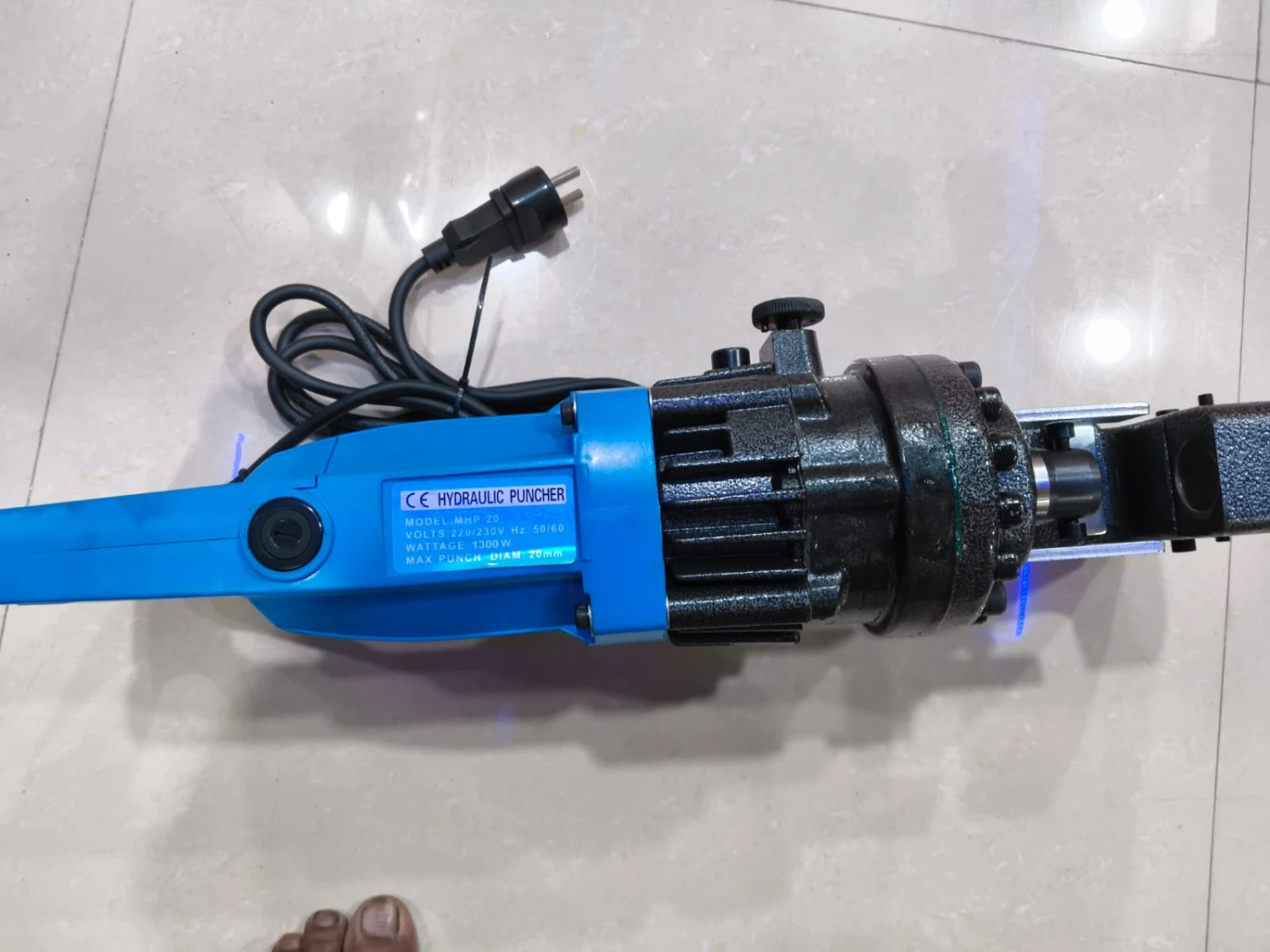

Hydraulic Hole Punching Machine

Name: Hydraulic Hole Punching Machine
Brand: C.E
SKU: HA-CE-100882
Price: 23128 INR
Availability: InStock

Brand C.E

Ask about this product

SKU HA-CE-100882

10 available

QTY

Minimum order qty 1

Call us at 18008906339 Buy on Chat Ask for Bulk Qty

GST Invoice

100% Genuine

Open Box Delivery

Free shipping on orders over ₹ 499.00

Have a GST number? Save up to 18% with input tax credit

Check Delivery Details

Prepaid available

COD available

Return Unavailable

Available Offers

5% instant discount on prepaid payment — Debit/Credit Card, UPI or Net Banking

Features

Type of Product	Holesaw Accessories
Brand	C.E
Weight	5 kg
SKU	HA-CE-100882

More C.E Products More Holesaw Accessories Products

Top Brands

100% Buyer Protection

Secure Payments

100% Original Products

Specifications
Description

Type of Product	Holesaw Accessories
Unit	Piece
Brand	C.E
Shipping Type	Flat Rate
SKU	HA-CE-100882

Hydraulic Hole Punching Machine

A Hydraulic Hole Punching Machine is a specialized, high-force industrial metalworking tool designed to pierce clean, precise holes, slots, and geometric shapes through heavy-duty metals. Unlike mechanical presses that rely on rotational flywheel energy, or manual drills that slowly shave away material, a hydraulic punch utilizes fluid power (Pascal's Principle) to deliver immense, linear force directly through a hardened punch and die set.

This technology is widely used in steel fabrication, electrical panel assembly (busbar punching), construction, shipbuilding, and automotive manufacturing due to its unmatched combination of speed, power, and edge quality.

⚙️ Working Principle

The machine operates on Pascal’s Law, which states that pressure applied to a confined fluid is transmitted undiminished throughout the fluid:

1. Fluid Pressurization: An electric motor, engine, or manual lever drives a hydraulic pump, drawing fluid (usually standard ISO VG 46 anti-wear hydraulic oil) from a reservoir and pumping it into a high-pressure line.

2. Linear Thrust: The pressurized fluid flows into a heavy-duty hydraulic cylinder, pushing a piston down with extreme force.

3. Shear and Punch: Attached to this piston is the "punch" (male tool). The workpiece is positioned over a matching "die" (female tool). The fluid forces the punch through the metal sheet or structural beam, shearing out a precise solid metal plug (called a "slug")
